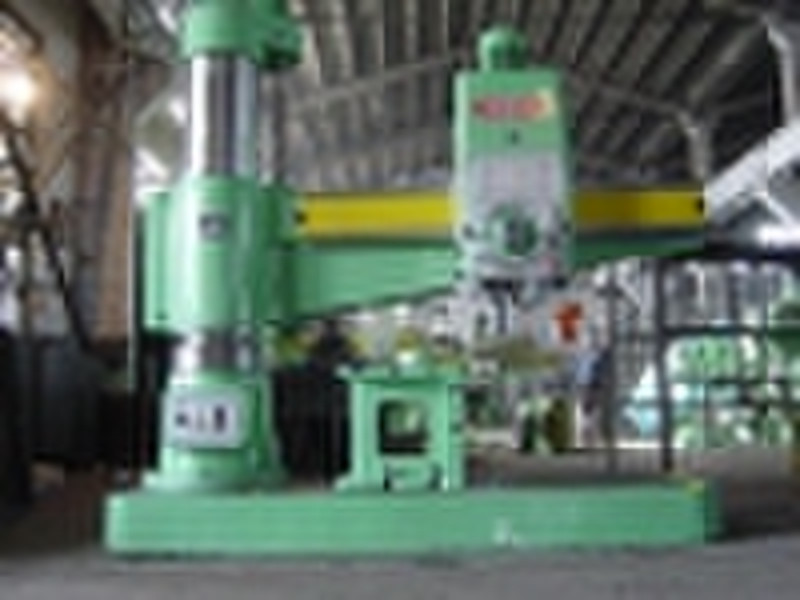

Radial Drilling Machine (Z3050-16)

Radial Drilling Machine Z3050*16 Specifications: 1) Max. diameter of holes drilling: 50mm 2) Distance from center line of main spindle to generate of pillar: max. 1,600mm; min.: 350mm 3) Distance from main spindle end face to working face of bed: max. 1,220mm; min. 320mm 4) Main spindle's tapered hold: Morse 5# 5) Main spindle travel: 315mm 6) Main spindle speed range: 25 - 2,000rpm 7) Number of main spindle speed rates: 16 8) Main spindle feed range: 0.04 - 3.2mm/r 9) Number of main spindle feed rates: 16 10) Movable horizontal distance of head stock: 1,250mm 11) Max. allowable torque of main spindle: 500N.m 12) Power of main motor: 4kW 13) Overall size (L x W x H): 2,500 x 1,070 x 2,840mm 14) Approx. weight of the machine: 3,500kg
