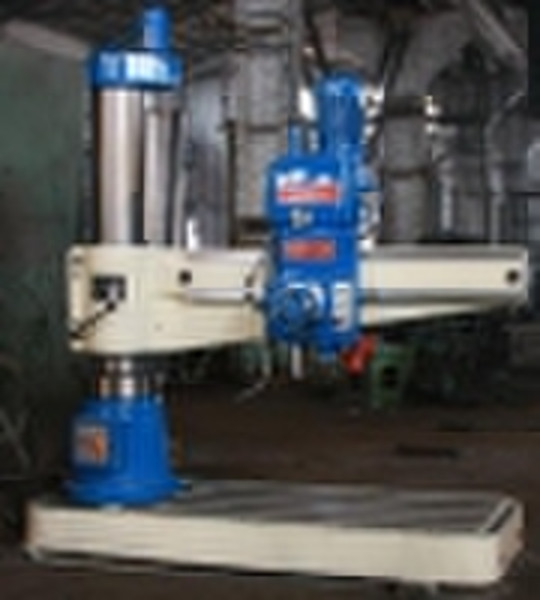

Radial Drilling Machine (ZQ3040*13)

Radial Drilling Machine (ZQ3040*13) Specification 1) Max. drilling diameter: 40mm 2) Distance from spindle axis to column: 1,300mm (max.), 300mm (min.) 3) Distance from spindle nose to working surface of base plate: 1,165mm (max.), 250mm (min.) 4) Taper of spindle (mores no): 4# 5) Spindle travel: 250mm 6) Spindle speed range: 50 - 2,350rpm 7) Range of spindle feeds: 0.13 0.54mm/r 8) Horizontal travel of spindle head: 1,000mm 9) Power of main drive motor: 3kW 10) Overall dimensions of machine (L x W x H): 2,035 x 800 x 2,224(mm) 11) Net weight: 1,900kg 12) Used to drill, expand, ream, groove and tap middle and large parts and even to bore holes if equipped with necessary devices
